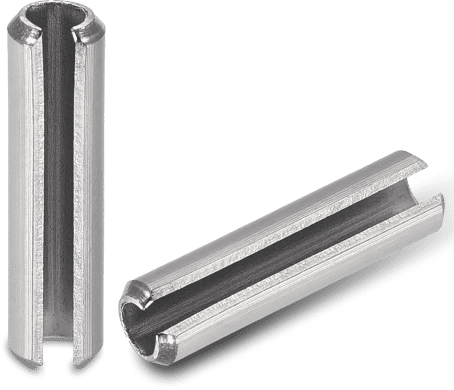

Slotted Pins as per ISO 8752
Standard Sizes of Slotted Dowel pin considered as per ISO 8752.

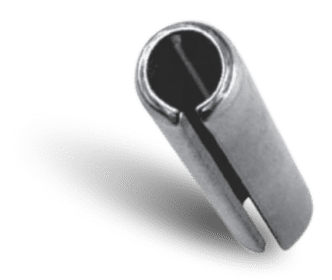

Slotted spring pins consist of a single coil of spring steel or stainless steel with an open slot sufficiently wide to enable the pin to reduce in diameter as it is driven into a hole of appropriate size. The ends of the pin have a beveled chamfer. They are designed for plain drilled holes but a countersink makes assembly easier, especially for the ISO 8752 type. Slotted pins are normally supplied in the heavy duty form to ISO 8752.
Features of Gala Pins
- Acts as a Mechanical Fastener that secures the position of two or more machine parts of a machine relative to each other.
- Most suitable for joints having double shear load application.
- Pin is having self-retaining ability by means of elastic property, increases the life of dynamic assemblies.
- Very easy to install and remove.
